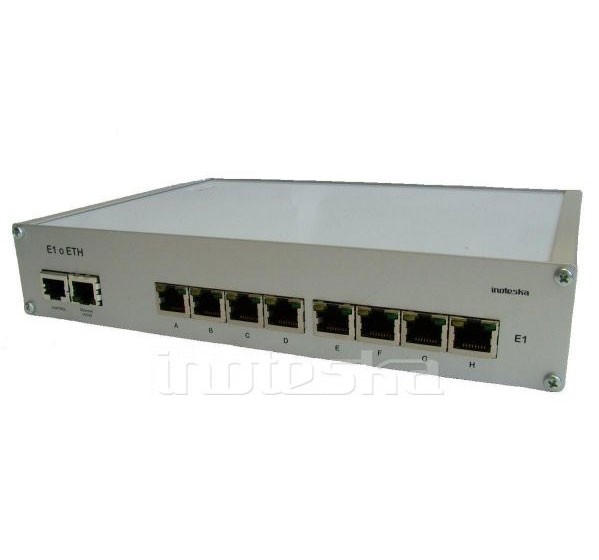

- multiplexer PRI, Ethernet
- transmission of 4/8 E1 interfaces over Ethernet1 Ethernet 10/100 BT auto MDIX option
- up to 8 E1 G703 (120 Ohm, RJ 45) unframed
- 1x RS232 (V24) RJ 45
- transmission in local network RAW ETH
- no transmission over IP network (it is possible to change)
- identification of devices according to their ID settings
- jitter buffer – optional setting to 2, 5, 10 ms.
- clock recovery /synchronization E1 over Ethernet network
- one device is synchronized from E1 side and another from Ethernet
- for secure device operation – it is necessary to set QOS in the network, min. delay, min. error rate and min. packets jitter
- desktop (1U) or rack (16 cards) version
product code:
ITX 482 70 MUX 4xE1 over ETH
ITX 482 71 MUX 8xE1 over ETH
systems for voice data communication
