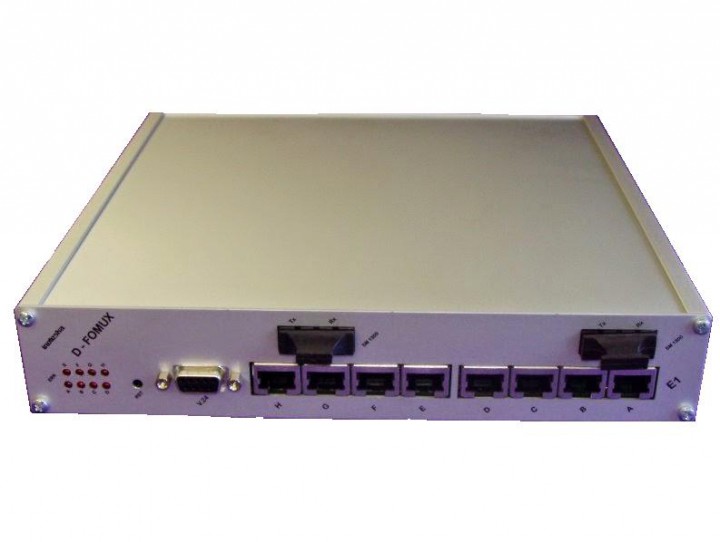

- multiplexer PRI, Ethernet, optic
- merges up to 8/16 E1and 2 Ethernet 10/100 BT to FO optical interface 155 Mb (STM1)
optical interface:
- SC duplex connector
- SM / MM (1300nm, 1500nm) (SM - single mode MM - multi mode)
- distance SM: 15, 40, 80 km (for variant SM 15km - one optical fibre is sufficient - different wave length)
- 16 E1 G703 120 Ohm - RJ 45 connector
- 2 Ethernet 10/100 BT FD - RJ 45 connector (customer interface + individual interface for configuration and control)
- 1 RS232 (V.24) - RJ 45 connector
- diagnostics of all interfaces
- SNMP protocol
- desktop (1U) or rack (8 cards) version
- local configuration from PC via interface V.24 (RS232) or 10/100 BT UDP
- remote configuration and control via TCP/IP, HTTP
- possibility to change firmware - upgrade (remotely as well)
product code:
Desktop 1U
ITX 495 09 FOMUX D, 8 x E1, 1 x fibre optic, 2 x Ethernet 10/100
ITX 495 10 FOMUX D,16 x E1, 1 x fibre optic, 2 x Ethernet 10/100
available variants: ITX 495 09/10.abcdef
- a - power supply 48V, 230V
- b - optic mode SM, MM, SFP*
- * for SFP only power supply must be specified
- c - wave length 1300, 1550 nm
- d - distance 2, 15, 40, 80 km
- e - type of connector 1=RJ45, 2=BNC
- f - optic communication X=over 2 optic fibers, A=type A over 1 optic fiber, B=type B over 1 optic fiber
Rack 6U
ITX 402 56 FOMUX D 8 x E1, 1 x fibre optic, 2 x Ethernet 10/100
ITX 402 57 FOMUX D 16x E1, 1 x fibre optic, 2 x Ethernet 10/100
