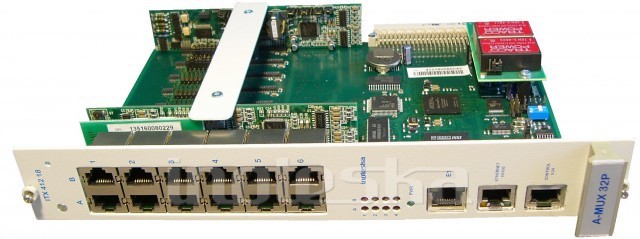

Multiplexer analog, PRI, data
- conversion and concentration of different types of analog signalling to ISDN DSS1
- converter FXO, FXS, E&M to E1 - channel bank
- 1 E1 G704 (120 Ohm, RJ 45) ISDN DSS1signalling
- 1 Ethernet 10/100 BT auto MDIX option
- 1 RS232 (V.24) RJ 45 connector
- 8 positions for analog voice modules - RJ 45 connectors
modules:
- FXS (analog subscriber) 4-fold
- FXO (analog trunk) 2-fold
- E&M signalling (pulse / permanent) - several types - 2-fold
- IDTMF signalling/off-premise extension OPX (company signalling) 2-fold
- LB telephone 2 - fold
- P signalling (3 wire DID) 2-fold
- 1x data module: 2 x X.21 / 2 x RS 485
Other informations:
- crossconnect of data interfaces n x 64 or 10/100 BT to E1 timeslots (DACCS)
- possibility to crossconnect LAN over specified E1 timeslots
- possibility to connect OPX Station or different analog converters (IDTMF sig.)
- many options for routing, analysis, adjustment and restriction of dial (suitable for private networks)
- possibility to connect also over Ethernet 10/100 BT
- flexible numbering
- caller ID generation and transmission (also on analog lines)
- number of other different functions and services
- diagnostics of all interfaces
- call detailed record
- SNMP protocol

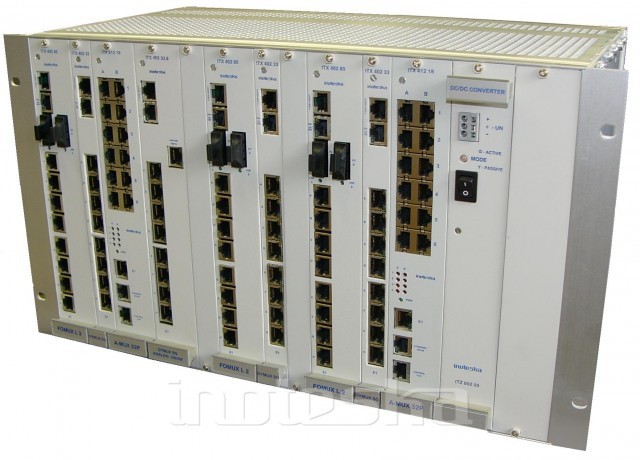

- desktop (1U) or rack (8 cards) version - crossconnect possibility through Dymux (8xE1 multiplexer)
- local configuration from PC via interface V.24 (RS232) or 10/100 BT UDP
- remote configuration and control via TCP/IP
- possibilty to save the parameter settings (configuration) to PC
- possibility to change firmware - upgrade (remotely as well)
- power supply -48 V DC
product code:
ITX 482 90 A-MUX 32P
ITX 482 90.1 A-MUX 32P, 2xX.21
ITX 432 01 A-MUX 32P 6U, 2xX.21
ITX 432 03 A-MUX 32P 6U, 2xRS485
ITX 495 90 A-MUX 32P 1U
