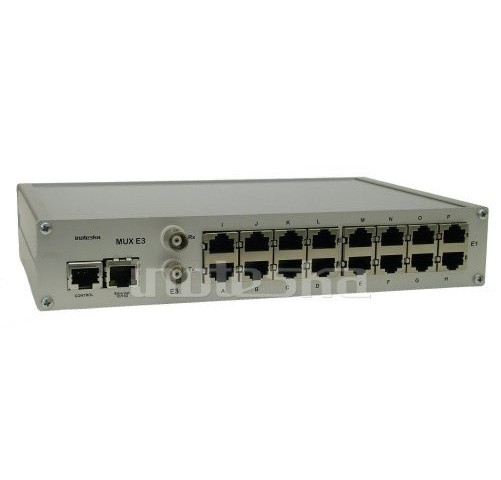

Multiplexer which merges up to 16xE1 and Ethernet 10/100 BT to E3
- E3 frame in accordance with G.751
- E3 BNC connector 75 Ohm
- 1x Ethernet 10/100 BT FD - RJ 45 connector
- Ethernet is transmitted using HDLC protocol
- up to 16x E1 G703 120 Ohm - RJ 45 connector
- 1x RS232 (V.24) - RJ 45 connector
- interfaces diagnostics
- SNMP protocol
- desktop or rack (8 cards) version
- local configuration from PC via V.24(RS232) interface, event. 10/100 BT, UDP
- remote configuration and control via TCP/IP, HTTP
- possibility to save the set parameters (configuration) to PC
- possibility to change firmware - upgrade (remotely as well)
product code:
ITX 484 05 MUX E3 8xE1, 1xE3, 1xETH
ITX 484 06 MUX E3 16xE1, 1xE3, 1xETH
