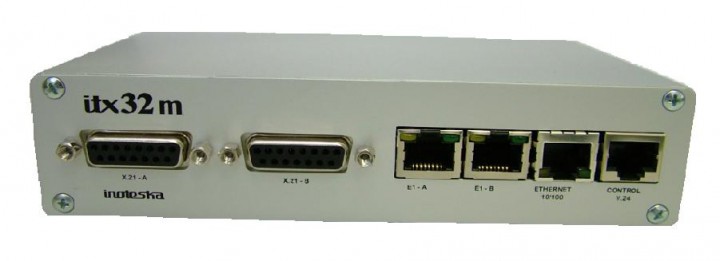

ITX32M 2E1 2DATA 1Ethernet 10/100 BT

ITX32M is a multifunctional device

• change of function (if enabled by licence) is made by change of configuration
• 2E1 G704 (120 Ohm, RJ 45 or 1x 75 Ohm BNC connector)
• E1 unframed 2.048 Mbps
• E1 framed n x 64 kbps ( n = 1 to 31 timeslots)
• data interfaces (2x): X21/ V35/ V36/ RS530/ RS232/RS485
• 1Ethernet 10/100 BT auto MDIX option
• 1RS232 (V.24) connector RJ 45 - for local configuration
• interfaces diagnostics

Device functions:

1 - converter:

• conversion of data interfaces, event. 10/100 BT to E1 interfaces

2 - timeslots crossconnect - DACCS:

• crossconnect of data interfaces n x 64 event. 10/100 BT to E1 timeslots
• crossconnect of E1 timeslots

3 - inverse multiplexer:

• connection of Ethernet interfaces 10/100 BT (LAN networks) over 2 x E1

4 - vlan router:

• routing from Ethernet to specified E1 interfaces according to VLAN ID

5 - transmission E1 over Ethernet:

• transmission of up to 2 E1 over Ethernet - UDP/IP

6 - n x 64 kbps multiplexer:

• transmission of selected E1 timeslots via synchronous data interfaces n x 64 kbps
• same devices must be on both network ends

Other informations:

• SNMP protocol
• local configuration from PC via V.24 (RS232) interface or 10/100 BT, UDP
• remote configuration and control via TCP/IP, HTTP
• possibility to save the set parameters (configuration) to PC
• possibility to change firmware - upgrade (remotely as well)

product code:

Realized in multiplexer ITX 32M
ITX 471 31.5 Multiplexer E1, X.21, ETH - (RJ, BNC)
ITX 471 31.7 Multiplexer D E1, D X.21, ETH - (RJ)
ITX 471 32.5 Multiplexer E1, UDI, ETH - (RJ, BNC)
ITX 471 32.7 Multiplexer D E1, D UDI, ETH - (RJ)
ITX 471 33.7 Multiplexer D E1, 2xRS485, ETH - (RJ)
(UDI-universal data interface)
